Water softener Aqmos R2D2 with 1" Connection set
Manufacturer Information
Name: Aqmos Wasseraufbereitung GmbH
Address: Im Mittelfeld 4-6, 63500 Seligenstadt
Email: info@aqmos.com
Website: https://www.aqmos.com/
European Manufacturer: Yes
Guaranteed safe checkout

Water softener Aqmos R2D2 with 1" Connection set

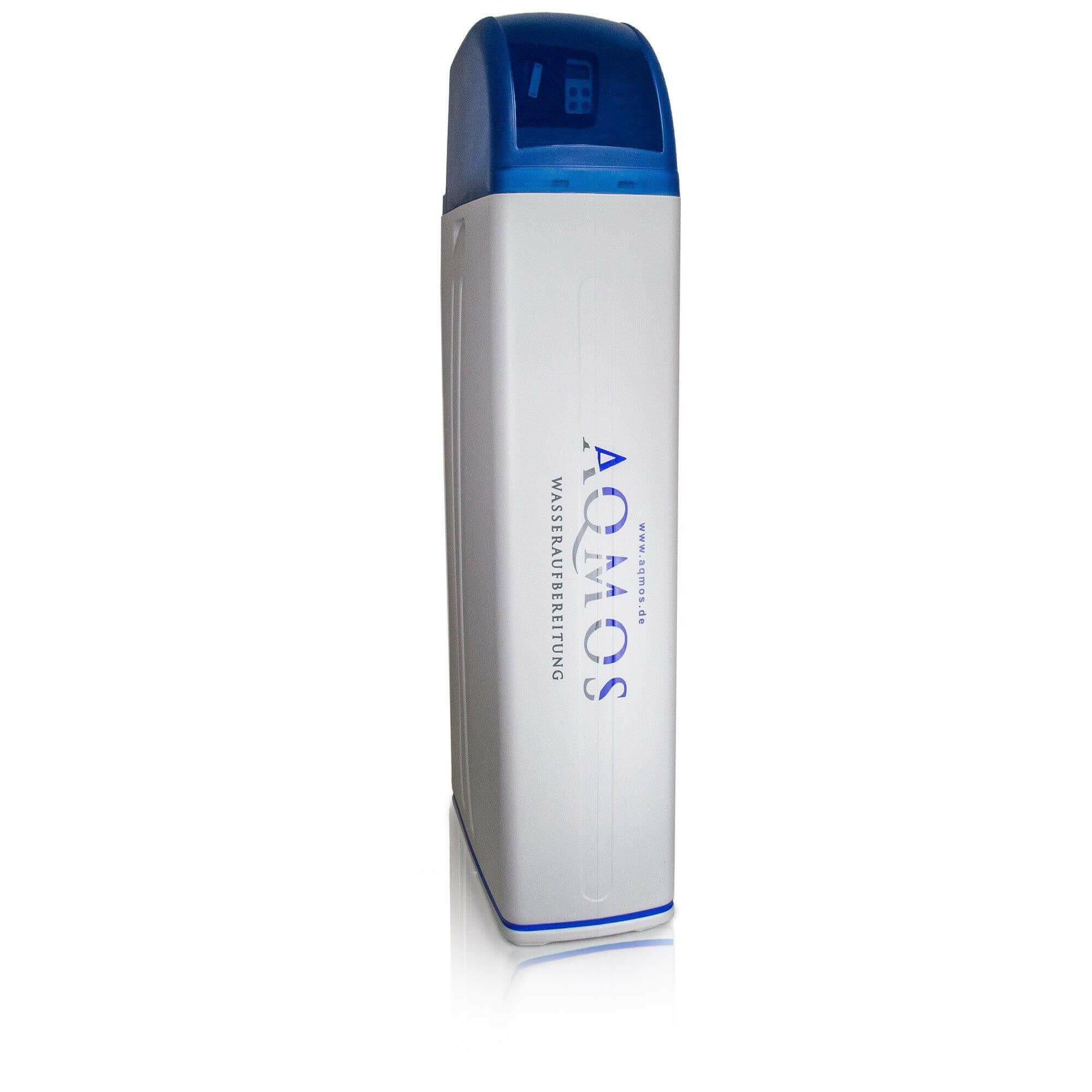

Water softener R2D2 with 1" Connection set – Innovative and efficient water purifier
Structure and design of the system
The R2D2 water softener impresses with its robust cabinet housing, which not only protects the internal components but also serves as a regeneration salt container. A removable lid makes maintenance and refilling particularly straightforward.
Inside the cabinet is a pressure-resistant GRP pressure cylinder filled with high-quality ion exchange resin. This resin forms the heart of the system and ensures permanently soft water through the effective exchange of hardness-forming substances.
Quantity control with the BNT 1650 valve
The integrated BNT 1650 valve enables precise, water-flow-controlled regeneration of the system. The built-in water meter measures soft water consumption and automatically initiates the regeneration process as soon as the preset flow rate is reached.
The regeneration phase begins daily at 2:00 a.m., with the valve preset to "Delayed Volume-Controlled Regeneration." This ensures that the water softener continuously operates optimally and reliably monitors consumption.
High-quality ion exchange resin
The powerful ion exchange resin is loaded with sodium ions and plays a central role in the softening process. As tap water passes through the resin, calcium and magnesium ions are effectively exchanged for sodium ions, resulting in soft water.
The durable resin ensures consistently high water quality with regular regeneration and boasts a service life of over 20 years. This ensures sustainable and economical water treatment.
Automatic regeneration of the water softener
Once the resin is fully saturated with calcium and magnesium ions, self-regeneration begins. A highly concentrated saline solution is automatically passed over the resin, reversing the exchange processes and re-enriching the material with sodium ions.
During this process, the calcium and magnesium ions, along with excess salt solution, are drained into the wastewater via a separate drain. This quickly regenerates the resin and makes it available for further use.
Forced regeneration and safety features
To prevent contamination of the resin bed, the forced regeneration function ensures that the system automatically switches to regeneration mode on the 10th day after prolonged inactivity. This function guarantees continuous hygienic water treatment.
An integrated safety float valve with a buoy protects the cabinet housing from overflowing water, ensuring reliable operation even in unusual situations. The system's salt supply lasts for approximately three to four months, depending on water hardness and consumption.
Technical data and performance features
The Water softening system R2D2 is available in various models tailored to households of 4 to 7 people. The capacity of the system varies depending on water hardness, so depending on the model, up to 7,200 liters can be softened.
The various technical parameters include a nominal flow rate based on DIN 16939 and a regeneration time of between 30 and 45 minutes. Furthermore, the system is designed for a maximum pipe water flow pressure of 6 bar and remains reliably operational at a minimum pressure of 2 bar.
With a large salt capacity of up to 50 kg and robust GRP pressure cylinders in various sizes, the system offers a flexible solution for diverse needs. The low power consumption of just 3 watts further underscores the energy efficiency of this innovative product.
Technical data
Technical data | BM-R2D2-32 | BM-R2D2-48 | BM-R2D2-72 |
---|---|---|---|
Performance data | |||
for households up to | 4 people | 5 people | 7 people |
Capacity at 10°dH | 3,200 L | 4,800 L | 7,200 L |
Capacity at 15°dH | 2,130 L | 3,200 L | 4,800 L |
Capacity at 20°dH | 1,600 L | 2,400 L | 3,600 L |
Nominal flow DIN16939 (20°dH to 8°dH) | 1.0 m³/h | 1.7 m³/h | 2.1 m³/h |
Nominal flow from 20°C to 0.5°dH (40BV/h) | 0.24 m³/h | 0.5 m³/h | 0.7 m³/h |
max. pipe water flow pressure | 6.0 bar | 6.0 bar | 6.0 bar |
min. pipe water flow pressure | 2.0 bar | 2.0 bar | 2.0 bar |
Pressure loss at max. flow | 0.6 bar | 0.6 bar | 0.6 bar |
Salt consumption per regeneration | 1.28 kg | 1.92 kg | 2.88 kg |
Regeneration time | 30 minutes | 40 minutes | 45 minutes |
Physical data cabinet housing | |||
Height of cabinet housing | 650 mm | 825 mm | 1,100 mm |
Wide cabinet housing | 220 mm | 220 mm | 220 mm |
Deep cabinet housing | 460 mm | 460 mm | 460 mm |
Maximum salt reserve | 25 kg | 40 kg | 50 kg |
Physical data of GRP pressure cylinder | |||
GRP pressure bottle type | 8"x17" | 8"x24" | 8"x35" |
Resin content | 8 L | 12 L | 18 L |
control valve | |||
control head | BNT 1650 | BNT 1650 | BNT 1650 |
Water connections | 1" AG | 1" AG | 1" AG |
Wastewater connection | 12 mm | 12 mm | 12 mm |
Electrical properties | |||
Power consumption | 3 watts | 3 watts | 3 watts |
Electrical connection | 230/50/24 V | 230/50/24 V | 230/50/24 V |
max.Water temperature | 30 °C | 30 °C | 30 °C |
Weight of the system | 17 kg | 27 kg | 32 kg |
Scope of delivery
- Water softener R2D2
- Mounting material
- Assembly instructions
- Operating instructions
