Sunex Spiegel für Röhrenkollektor HP 22/30 – 4 Spiegel, Aufdach & Flachdach

Sunex mirror for tube collector HP 30 - 4 mirrors, on-roof & flat roof

Product description

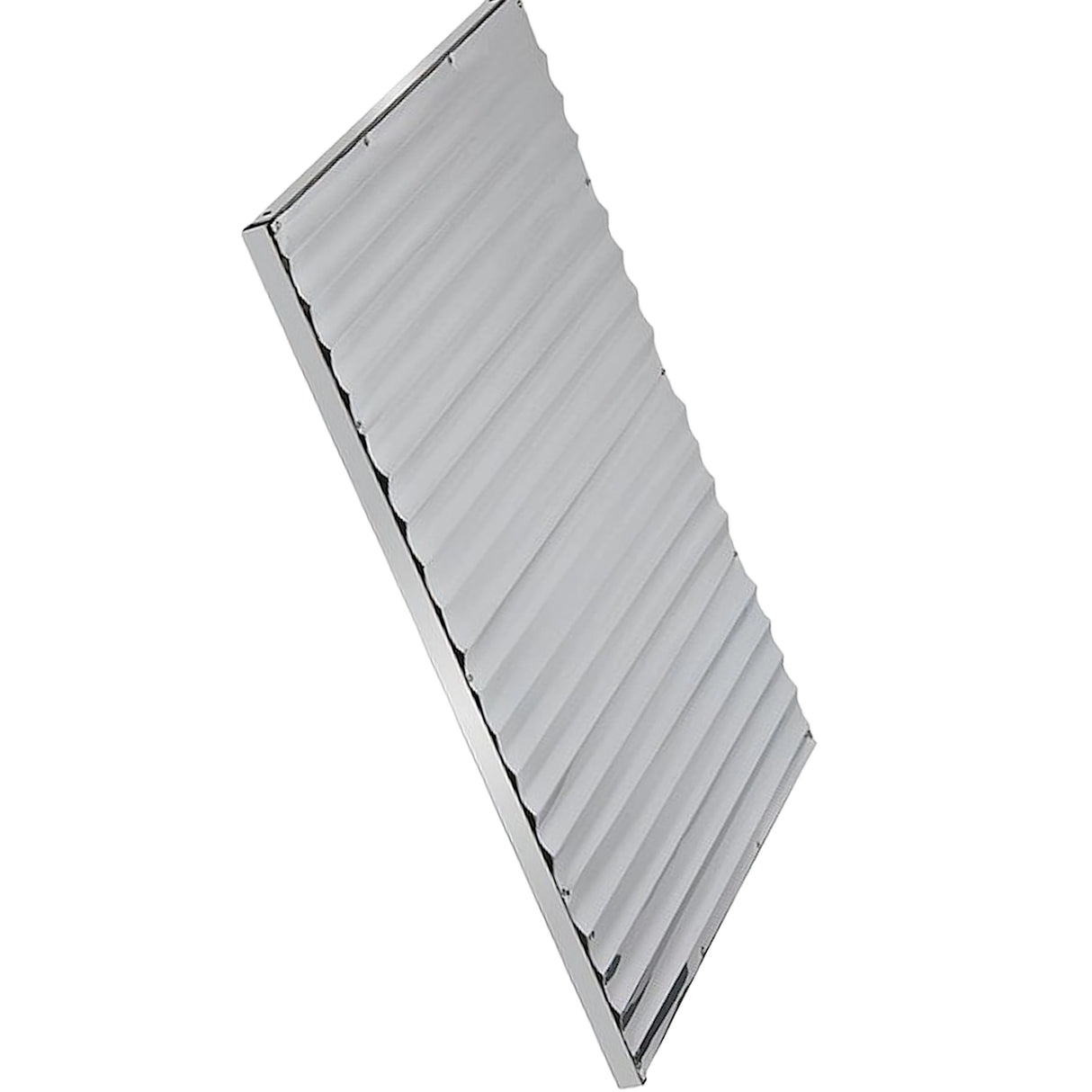

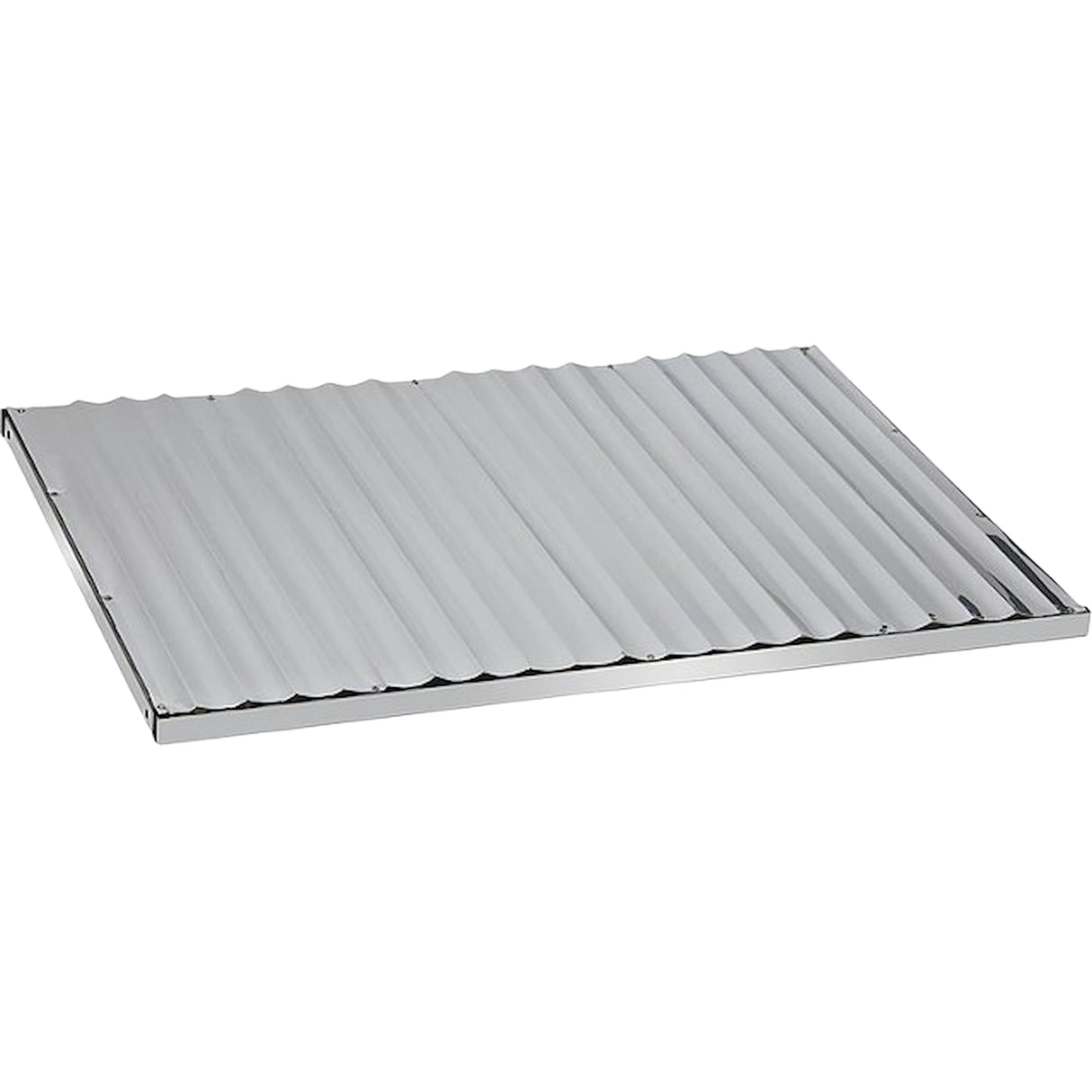

The Sunex mirrors for tube collector HP 30 are specially developed reflectors that increase the yield of your tube collector by specifically reflecting the sun's rays back between the glass tubes. The set contains four precisely manufactured mirrors that adapt harmoniously to the geometry of the HP 30 and thus optimize the light output.

Advantages

The additional reflection increases the energy output, particularly in the morning and evening hours as well as when the sun is at a flat angle of incidence. The result is greater efficiency of the entire system without complex retrofitting of the collector itself.

The mirrors are a cost-effective way to improve the performance of existing collectors and can increase the long-term profitability of your solar thermal system.

Mounting & Compatibility

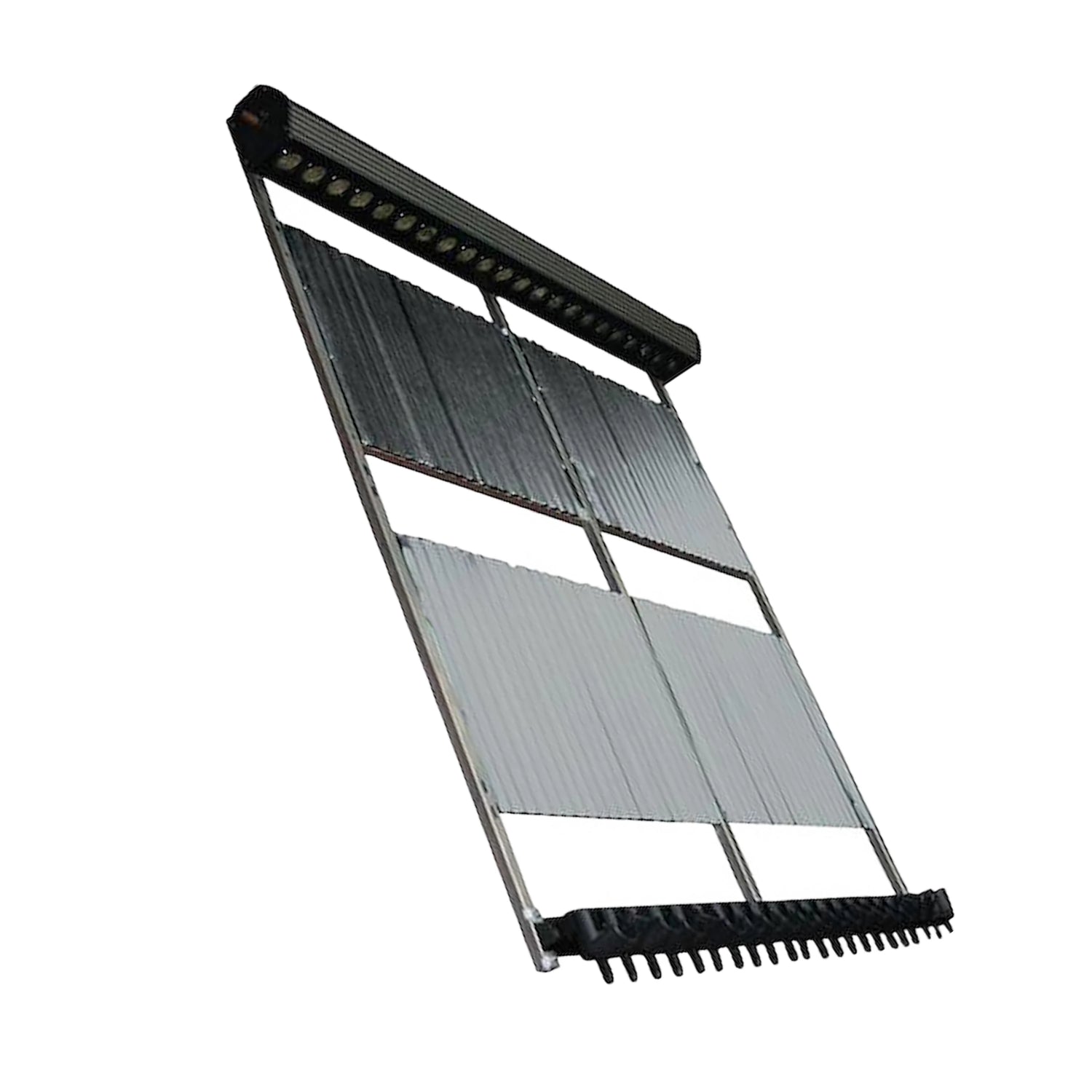

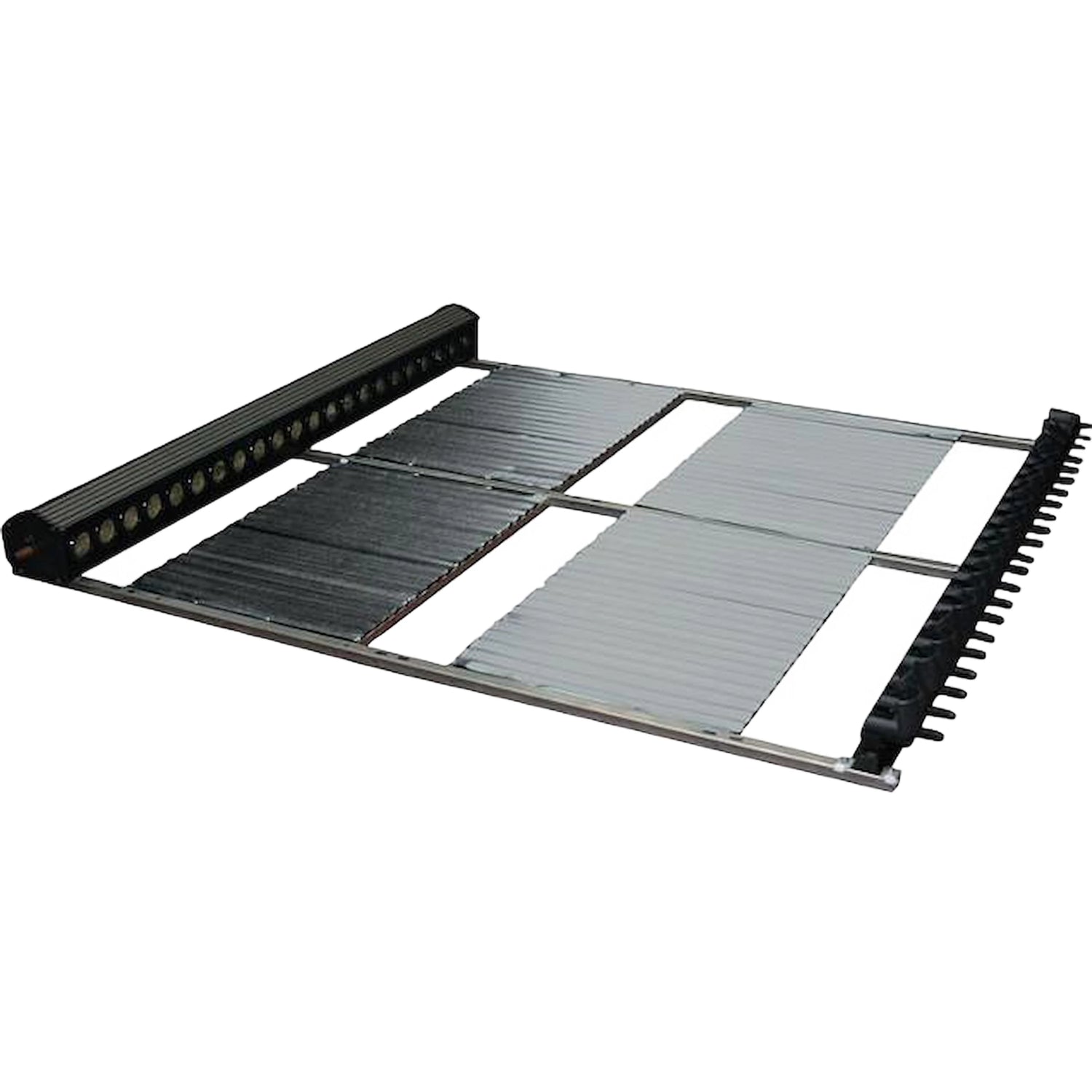

The Mirrors are designed for installation on rooftop and flat roof systems and can be attached directly to the HP 30 tube collector. It is attached using the screws provided; Reworking of the collector is usually not necessary.

Easy retrofitting: The installation is technically demanding, but can be implemented quickly by experienced users or specialist companies. When installing, ensure that the mirrors fit cleanly and are aligned correctly.

Scope of delivery

The scope of delivery includes four Sunex mirrors suitable for the HP 30 tube collector as well as the required fastening screws. The delivery only includes the components mentioned.

Care instructions

If necessary, clean the mirror surfaces with a soft, lint-free cloth and mild cleaning agent to avoid scratches and damage. Regularly check that the screws are tight to compensate for weather influences.

Technical data

Spielge HP22: dimensions length × width × height 86.00 × 62.50 × 13.50 cm
Mirror HP30: dimensions length × width × height 120.50 × 64.00 × 13.50 cm

Scope of delivery

• Sunex mirror for tube collector HP
• 4 mirror
• Mounting screws
