Air conditioning Keyon series

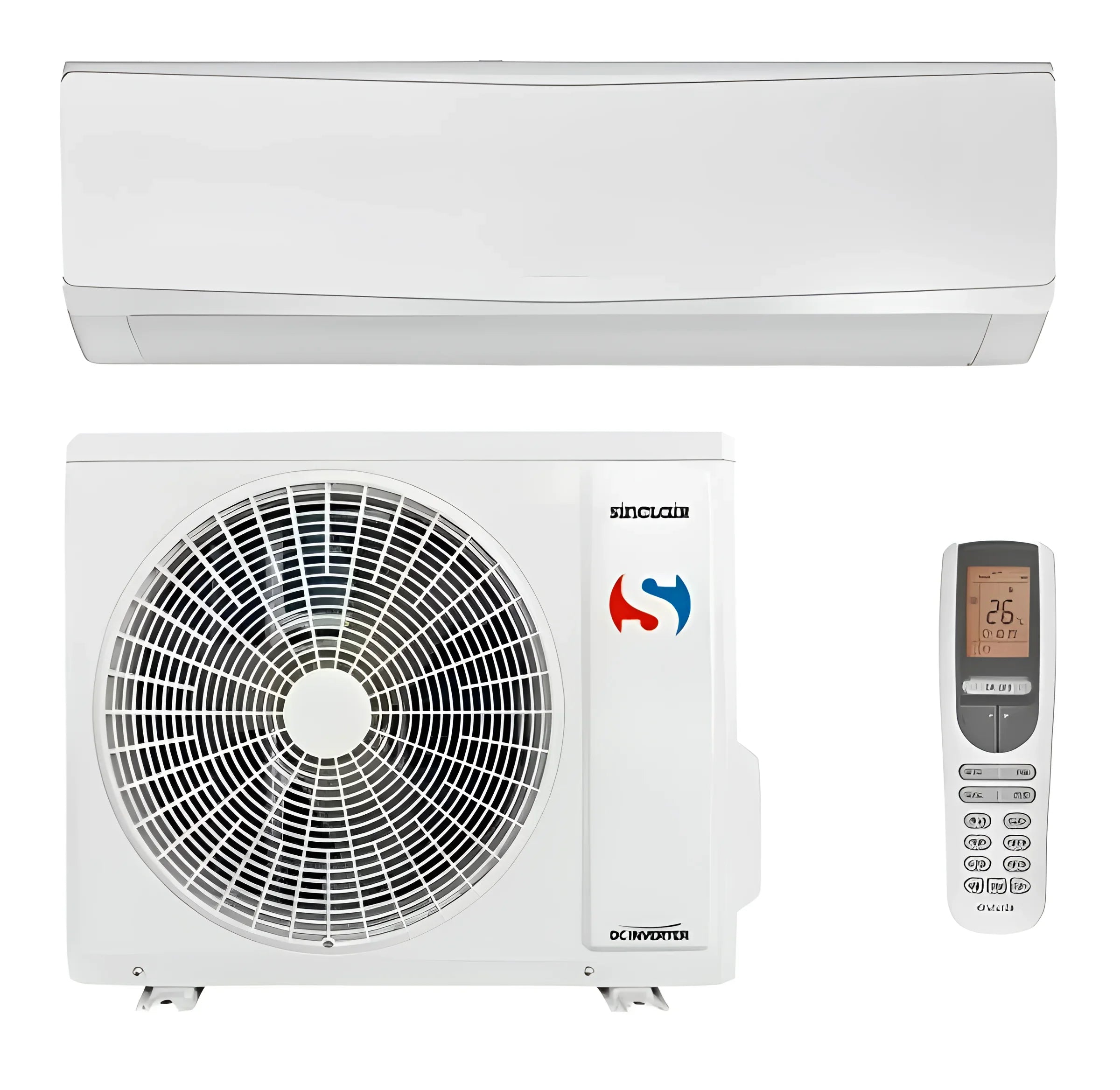

Keyon Series Air Conditioner
HIGHLIGHTS of the air conditioning system
- Energy efficiency class A++/A+
- “I FEEL” function
- “8 °C frost protection” function
- New design of the outdoor unit
- Incl. infrared remote control
- Hidden display
- Incl. Cold Plasma Ionizer
- Integrated WiFi control
- Slat movements:
- - 2.7 kW and 3.2 kW horizontal
- - 4.6 kW and 6.2 kW horizontal
- vertically adjustable
- OPTIONAL: MODBUS control via SWC-02 or SWC-04 (except SIH-09BIK) possible
The Keyon air conditioning system is a true all-rounder among the SINCLAIR split wall units.
Thanks to a variety of functions and an attractive price/performance ratio, the series is becoming a sales hit.
Keyon Series Air Conditioner
The hidden display, which can be switched off if desired, always keeps you informed about the operating mode and target temperature.
After a one-time setup, operation via smartphone is also possible, giving you full control over your air conditioning system even when you are on the move.
The built-in cold plasma ionizer cleans your room air and creates a pleasant indoor climate.
Keyon Series Air Conditioner
The included infrared remote control further enhances the comfort of the Keyon series air conditioner, measuring the room temperature where you are and adjusting the performance accordingly ("I FEEL" function). The "8°C Frost Protection" function protects your rooms from cooling down in winter. When the room temperature drops below 8°C, the unit activates an efficient heating mode.
Technical data: Keyon series air conditioner
| Model | SIH-09BIK | SIH-12BIK | SIH-18BIK | SIH-24BIK | ||
|---|---|---|---|---|---|---|
| SOH-09BIK2 | SOH-12BIK2 | SOH-18BIK | SOH-24BIK | |||
| Performance | Cool | kW | 2.7 (0.6 - 3.4) | 3.2 (0.9 - 3.7) | 4.6 (1.0 - 5.3) | 6.2 (1.8 - 6.4) |
| Heat | kW | 2.8 (0.6 - 3.7) | 3.4 (0.9 -4.1) | 5.2 (1.0 - 5.7) | 6.5 (1.6 - 6.6) | |
| Voltage/Frequency | V/Ph/Hz | 220~240/1/50 | 220~240/1/50 | 220~240/1/50 | 220~240/1/50 | |
| Power consumption | Cool | kW | 0.74 | 0.99 | 1.36 | 1.77 |
| Heat | kW | 0.7 | 0.92 | 1.34 | 1.65 | |
| Max. cable consumption | kW | 1.5 | 1.5 | 1.9 | 2.2 | |
| Max.Operating current | A | 7.5 | 7.5 | 9 | 10 | |
| SEER/SCOP | 6.6/4.2 | 6.5/4.1 | 6.4/4.0 | 6.8 /4.0 | ||
| Energy efficiency class | Cooling/Heating | A++/(A+/A+++/B) | A++/(A+/A+++/-) | A++/(A+/A+++/-) | A++/(A+/A+++/-) | |
| Eta value | Cooling/Heating | 261/165 | 257/161 | 253/157 | 241/157 | |
| Air volume flow | Inside | m³/h | 550/500/430/290 | 680/560/450/390 | 850/750/650/550 | 1100/950/750/650 |
| Outside | m³/h | 1950 | 1950 | 1950 | 2800 | |
| Sound pressure level of 1 m | IG/AG | db (A) | 40/38/34/23/51 | 41/36/32/23/52 | 48/41/37/31/53 | 48/44/40/35/58 |
| Sound power level | IG/AG | db (A) | 55/48/44/36/62 | 57/46/42/37/64 | 58/51/47/34/63 | 61/58/53/49/67 |
| Dehumidify | l/h | 1.4 | 1.4 | 1.8 | 1.8 | |
| Refrigerant/filling quantity | Type/Quantity | kg/eq. CO2 | R32/0.53/0.36 | R32/0.57/0.38 | R32/0.75/0.51 | R32/1.30/0.88 |
| Pipe diameter | Cool | inch/mm | 1/4/6.0 | 1/4/6.0 | 1/4/6.0 | 1/4/6.0 |
| Heat | inch/mm | 3/8/9.5 | 3/8/9.5 | 3/8/9.5 | 1/2/12.0 | |
| Min./Max. pipe length | m | 3/15 | 3/15 | 3/25 | 3/25 | |
| Max.Difference in altitude | m | 10 | 10 | 10 | 10 | |
| Pre-filled pipe length | m | 5 | 5 | 5 | 5 | |
| Additional cooling | g/m | 16 | 16 | 16 | 16 | |
| Dimensions (HxWxD) | Inside | mm | 251x770x190 | 289x849x215 | 300x972x225 | 325x1081x248 |
| Outside | mm | 550x732x330 | 550x732x330 | 550x732x330 | 555x873x376 | |
| Net weight | Inside | kg | 8.5 | 10.5 | 13.5 | 16.5 |
| Outside | kg | 25 | 25 | 26.5 | 36.5 | |
| Target temperature range | °C | 16~30 | 16~30 | 16~30 | 16~30 | |
| Operating temperature range | Cooling/Heating | °C | -15~43/-15~24 | -15~43/-15~24 | -15~43/-15~24 | -15~43/-15~24 |
| Incl. remote control | INFRARED | INFRARED | INFRARED | INFRARED | ||
| Incl. WLAN module | YAA1FB6 | YAA1FB6 | YAA1FB6 | YAA1FB6 | ||
| Incl. catechin filter and activated carbon filter | SAF-OPWC4 + -A4 | SAF-OPWC4 + -A4 | SAF-OPWC4 + -A4 | SAF-OPWC4 + -A4 |
*Technical changes reserved | Images may vary
