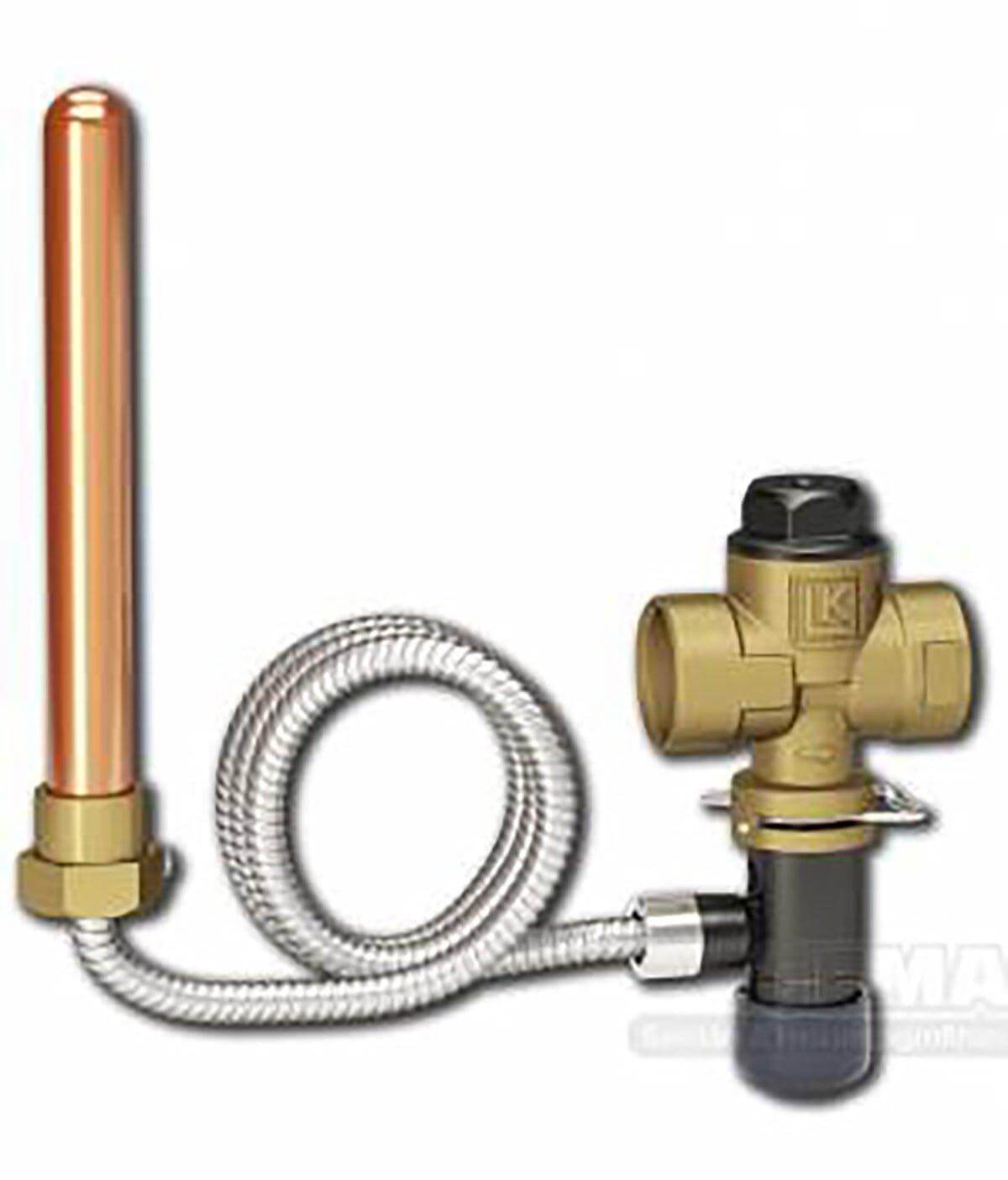

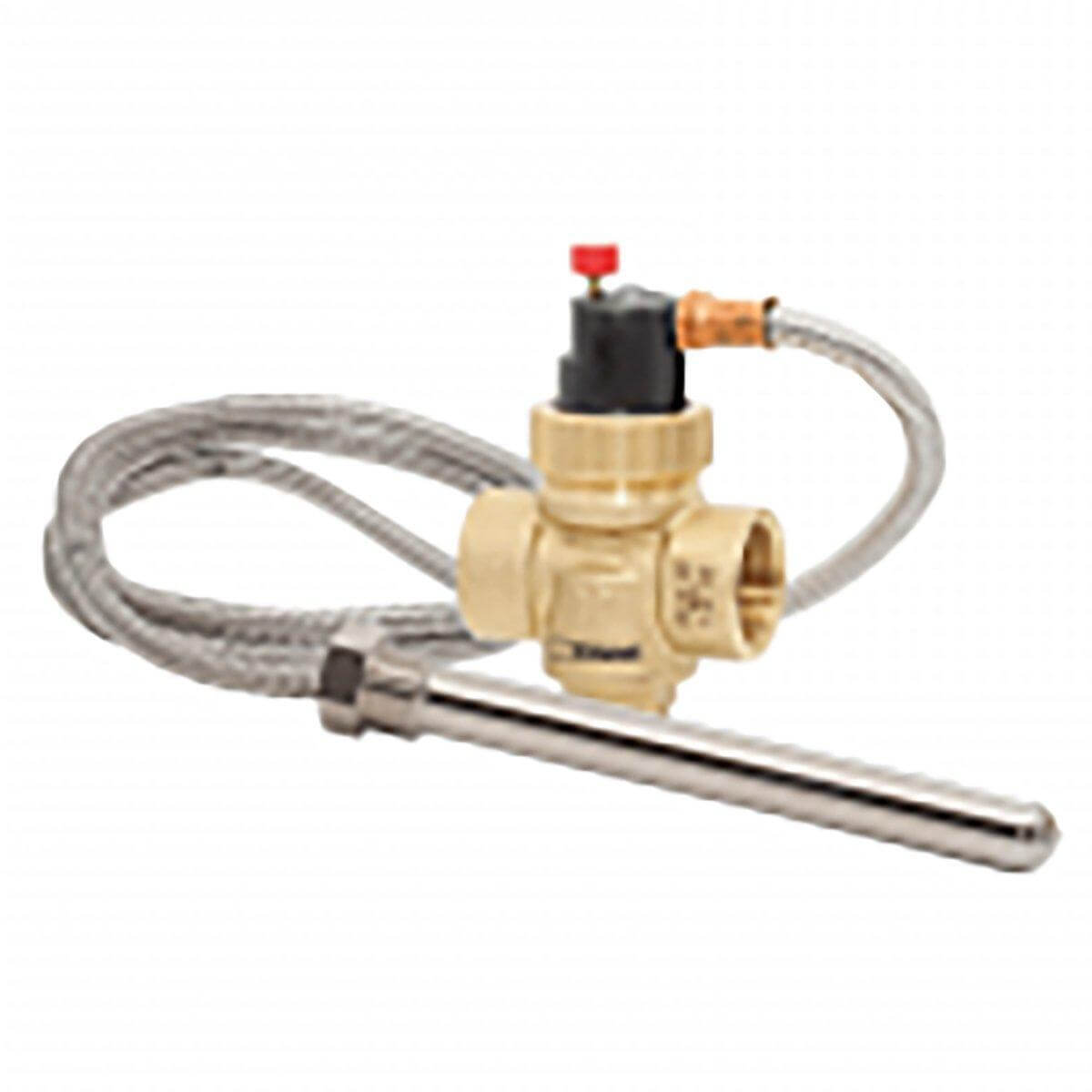

Thermal discharge safety device for boilers made of CW617N Brass for boiler

Thermal drain safety device ¾"

The thermal safety device protects your boiler from overheating in the event of a power or charging pump failure.

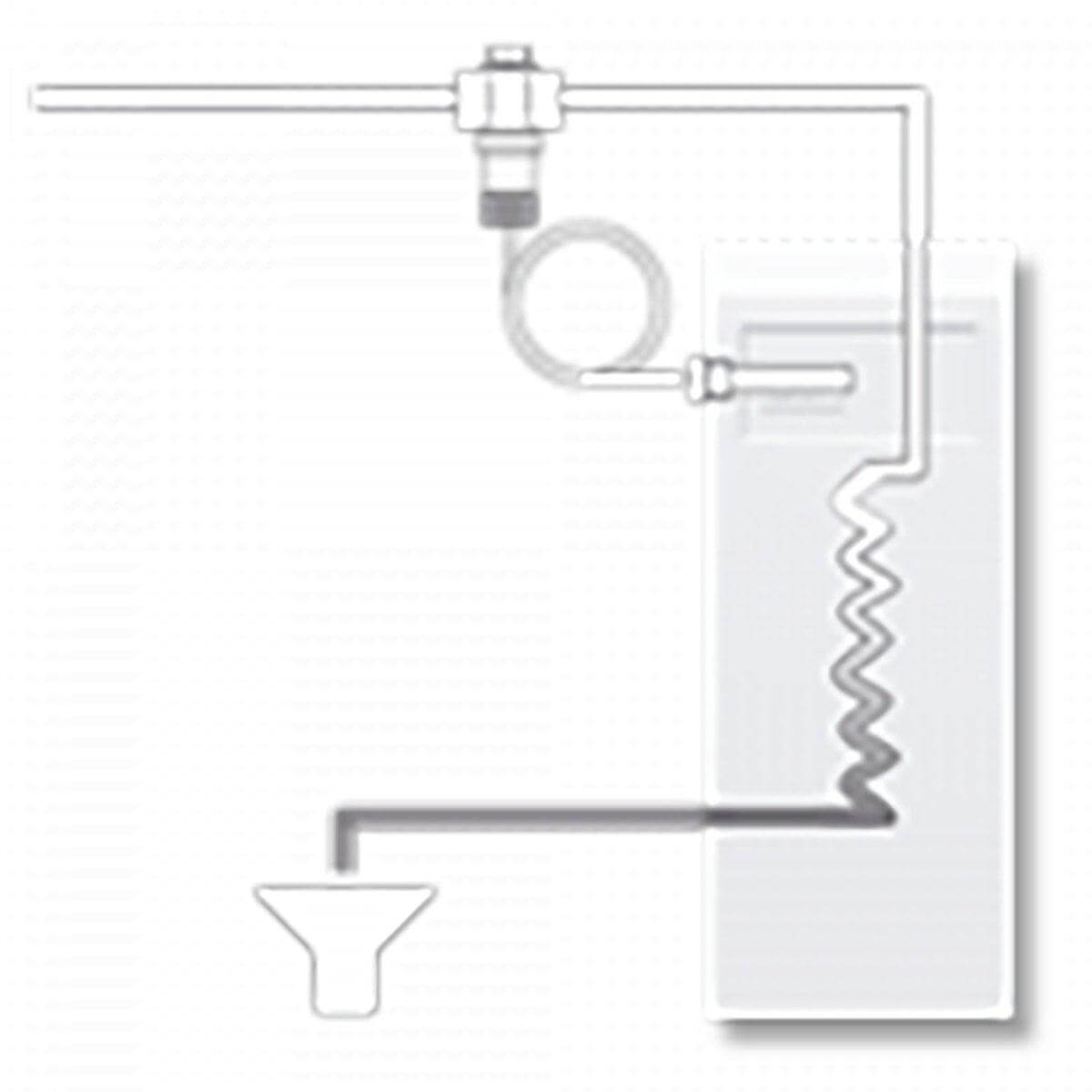

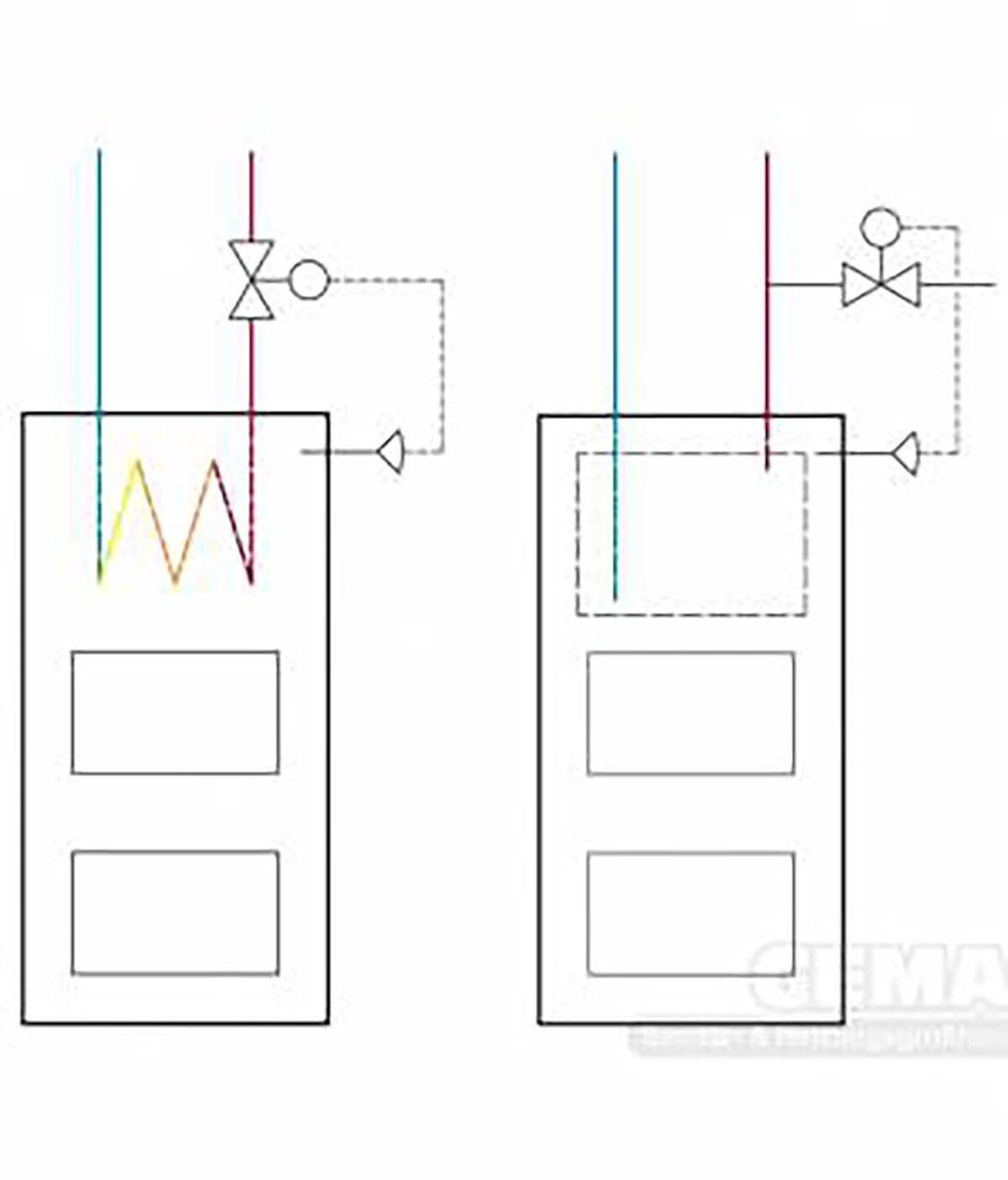

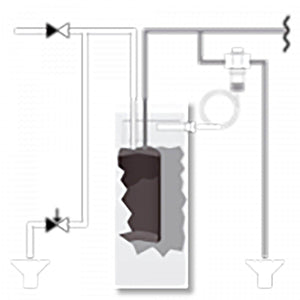

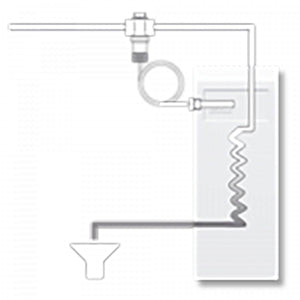

A thermal safety device prevents overheating of boilers fired with solid fuels in a water-based circulating heating system in accordance with EN12828.

Services:

• Opening temperature: 97±2 °C
• Operating temperature: 5 °C/110 °C
• Max. operating pressure: 10 bar
• Max. discharge capacity: 6.5 m³/h at 6 bar
• Material, valve body: EN 12165 CW617N
• Material, immersion tube: EN 12165 CW617N/Cu
• Material, spring: stainless steel
• Material, capillary tube: Cu

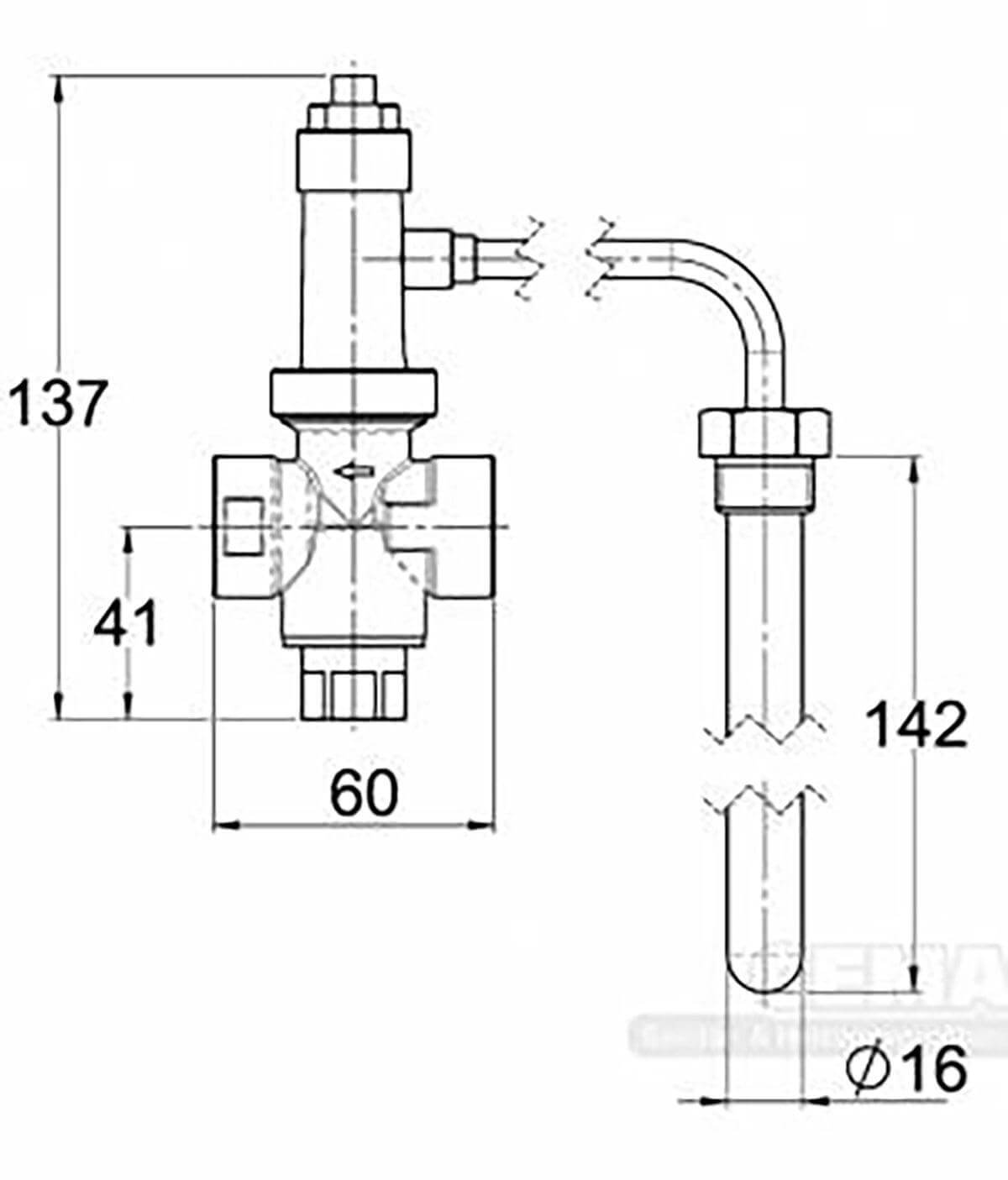

Product data: Thermal drain protection

• Connection input: ¾" IG
• Connection output: ¾" IG
• Connection immersion sleeve: ½" AG
• Length of capillary tube: 1300 mm

*Technical changes reserved | Images may vary
