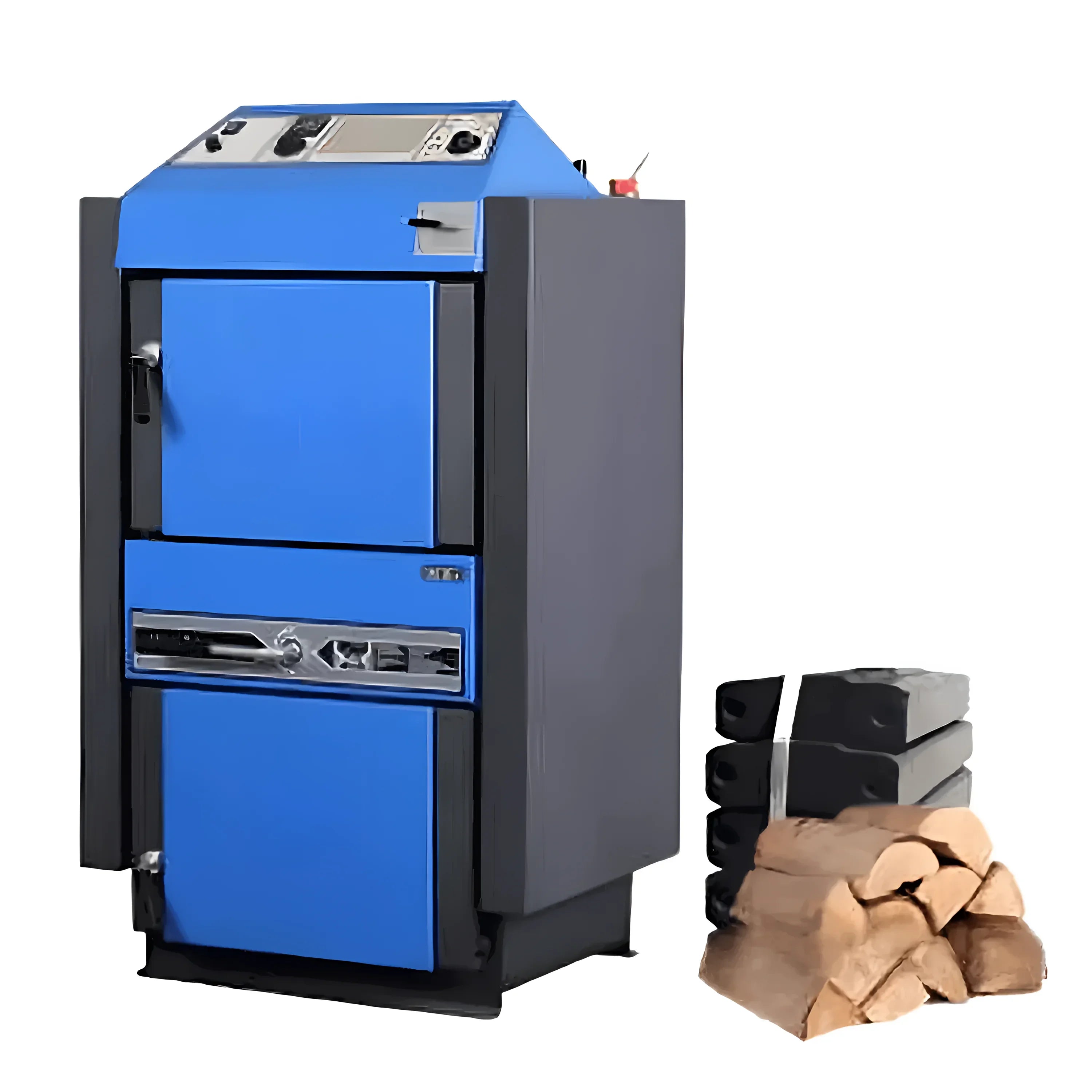

ATMOS KC 16 S – coal gasifier 18 kW

Product description

The ATMOS KC 16 S is a manually fed gasification boiler for the efficient combustion of lignite briquettes. Thanks to its ceramic-lined combustion chamber, rotating cast iron grate, and preheated secondary air, the boiler achieves clean, stable combustion with high efficiency. It is designed for use in single-family homes and small apartment buildings and meets the requirements of the German Federal Immission Control Act (BImSchV) Stage II and EN 303-5 Class 5.

Highlights

• Gasification boiler specifically for lignite briquettes

• Efficiency up to 88.5%

• Rotating cast iron grate for easy cleaning

• Extraction fan for clean refueling

• BImSchV Level II & Ecodesign 2015/1189

Areas of application

Suitable for:

• Single-family homes, weekend homes

• Heating systems with buffer storage

• Operators with solid fuel experience

Not suitable for:

• Pellet operation

• Wood chips, shavings, dust-like fuels

Technical specifications (excerpt)

• Rated power: 18 kW

• Efficiency (heating value): 88.5%

• Fuel: Lignite briquettes (19–23 MJ/kg)

• Flue pipe connection: Ø 150/152 mm

• Dimensions (H × W × D): 1166 × 675 × 658 mm

• Weight: 275 kg

• Water capacity: 37 l

• Minimum return temperature: 65 °C

• Boiler class: 5 (EN 303-5)

Scope of delivery

• ATMOS KC 16 S boiler

• Exhaust fan

• Honeywell FR 124 tension regulator

• Ash box, cleaning tools

• User manual

Conclusion

The ATMOS KC 16 S is a compact, efficient coal gasifier for smaller heating loads – robust, compliant with standards and economical in operation.

👉 Order commissioning now, along with the commissioning!
With the "Commissioning by ATMOS" service, you ensure that your boiler is optimally set up and that all technical requirements are met.

Further information on the process, requirements and services can be found in our article on [ATMOS commissioning].
