8 KWP PV system 19x Trina 440Wp Black Frame 5KW storage

8 kWp PV system + storage 19x Trina 440Wp Black Frame 5kW storage

PV system with storage + Huawei hybrid inverter

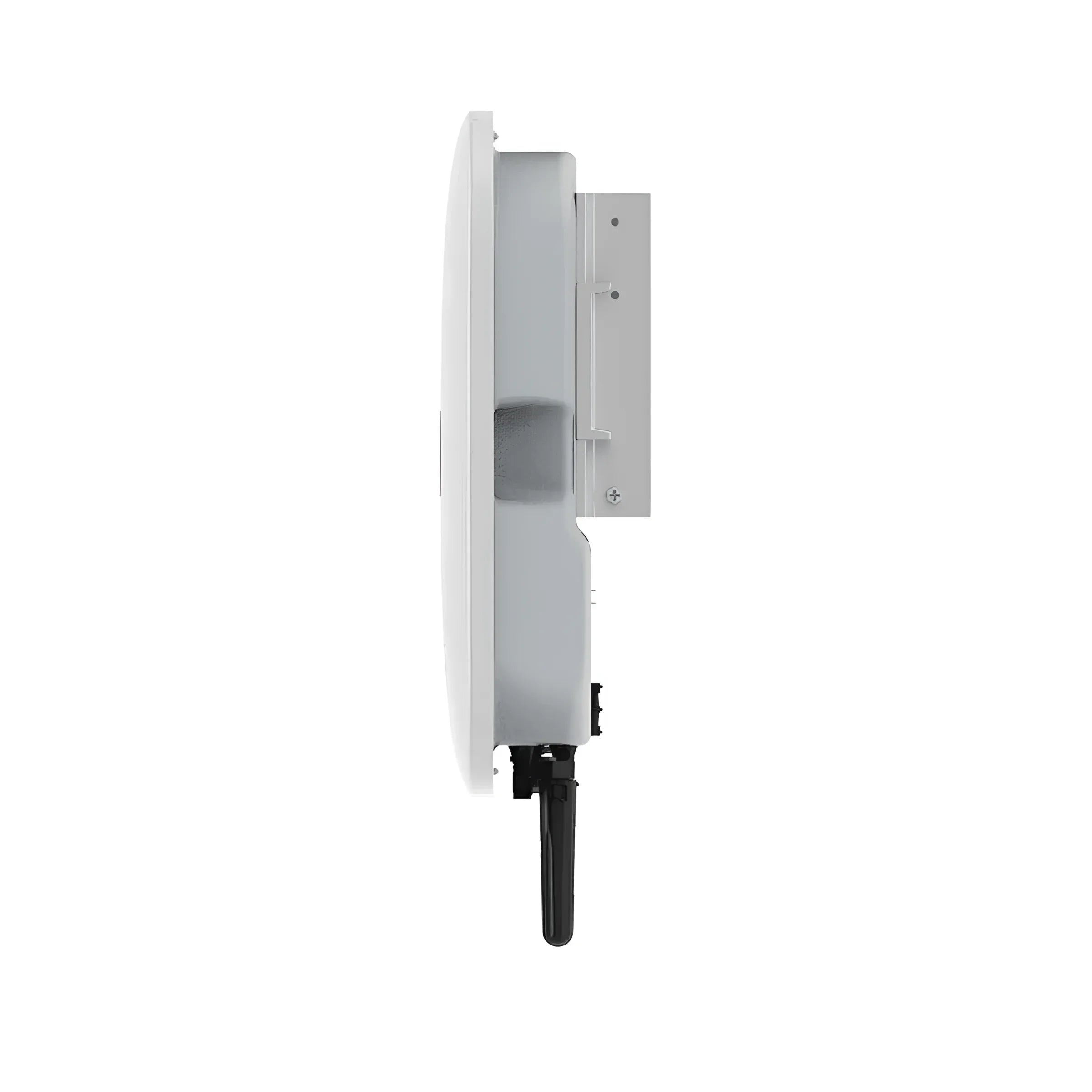

Huawei SUN2000-8KTL-M1 hybrid inverter

• One of the lightest and most compact hybrid devices on the market
• Very high European efficiency
• AI-assisted arc protection and arc fault localization for faster resolution
• Very durable, as only parts with a long service life were used
• Setup completely via app
• Prepared for additional battery charging via AC power sources
• Remote maintenance and automatic updates
• User-friendly devices for beginners in the field of photovoltaics
• Warranty: 10 years

Technical data

• Phase: 3
• MPP trackers: 2
• Recommended maximum PV power 12000 Wp
• Open circuit voltage: 41.10 V
• Voltage range: 190-850 V
• Communication: RS485, WLAN
• High efficiency of up to 98.6%
• IP65 waterproof
• Fanless through natural convection
• LED display
• Web Interface
• P max. AC 9000W
• Dimensions 525x470x146.5mm
• Weight: 17kg

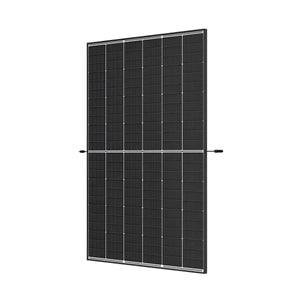

Trina Vertex S+ TSM-NEG9R.28/440Wp Monofacial Glass-Glass Black Frame

• Up to 440W peak power, 22.0% module efficiency with high-density cell interconnect technology.
• Multi-busbar technology for more absorption, lower series resistance, improved current dissipation and increased reliability.
• Lower installation costs with increased performance and efficiency.
• Excellent resistance to fire and harsh environmental conditions.
• 5,400 Pa shear load and 4,000 Pa wind load (test loads)
• High compatibility with available inverters, optimizers and mounting systems.
• Easy handling thanks to its perfect size and low weight. Optimized transport costs.
• Flexible installation solutions for system use.

8 kWp PV system + storage

Technical data

• Solar cells: Monocrystalline
• Cell arrangement: 144 cells
• Module dimensions: 1,762×1,134×30 mm
• Weight: 21.8 kg
• Glass: 1.6 mm, highly transparent, anti-reflective coated heat-tempered glass
• Back: 1.6 mm, heat-tempered glass
• Encapsulation material: EVA/POE
• Frame: 30 mm anodized aluminum alloy, black
• Junction box: IP 68
• Cable: Photovoltaic cable: 4.0 mm² Landscape format: 1,100/1,100 mm Portrait format: 280/350 mm*
• Connector: TS4/MC4 EVO2*

LUNA2000 Energy Storage Battery Module 5kW

• Fully modular battery/storage
• Energy optimizer for each battery unit
• Flexible and easy stand and wall mounting possible
• Quick setup via APP
• Usable capacity: 5000.0 Wh
• 10-year manufacturer's warranty

Technical data

• Modular design (5kWh)
• Flexible planning
• Expandable up to 30kWh
• Can be combined with single- and three-phase Huawei inverters
• Lithium iron phosphate cell
• Multi-level security concept
• Can be retrofitted at any time, plug and play
• DC system, reduces losses
• Real 5kWh, DOD of 100%
• For indoor and outdoor installation
• Power module = 12 kg
• Battery module = 50 kg
• Fast commissioning
• 100% depth of discharge
• Charging optimization

Scope of delivery 8 kWp PV system + storage

• 20x solar cable 6mm² H1Z2Z2-K black (sold by the meter)
• 20x solar cable 6mm² H1Z2Z2-K red (sold by the meter)
• 19x SILVER aluminum rail solar systems - 2.4 meters
• 30x module center clamp click ALU black 28-35mm

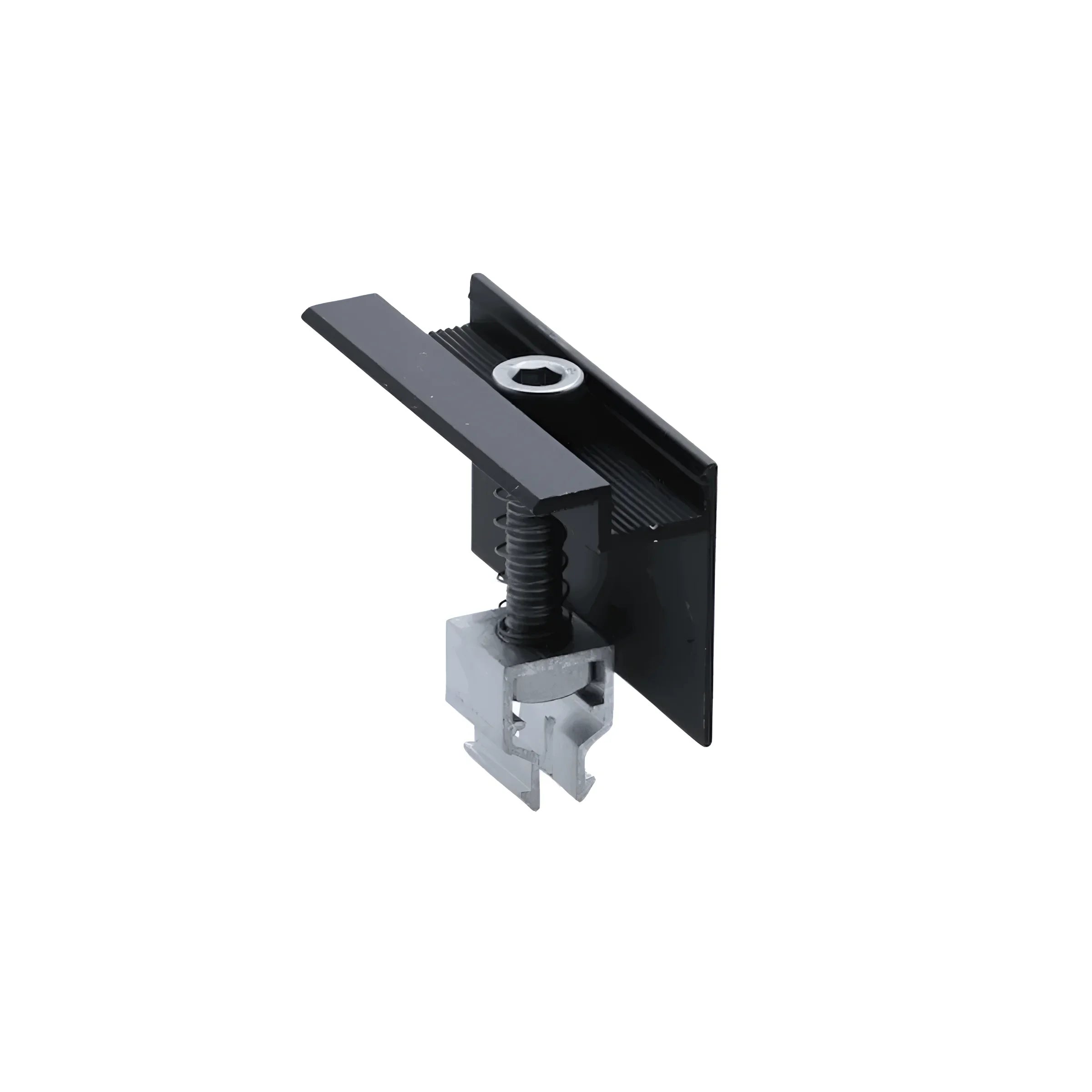

• 16x module end clamp Klick ALU black - 30mm
• 2x MC4 connectors PV-KST4/6II-UR
• 2x MC4 socket PV-KBT4/6II-UR
• 1x Huawei SUN2000-8KTL-M1 hybrid inverter
• 120x hammer head bolt with locking nut M10x25mm stainless steel
• 50x stainless steel 1.4016 roof hooks for solar photovoltaics
• 19x Trina Vertex S+ TSM-NEG9R.28/440Wp Monofacial Glass-Glass Black Frame
• 16x Classic flat connector 4 holes
• 1x Huawei LUNA2000-(5-30)-S0 BMS Energy Storage
• 1x LUNA2000 Energy Storage Battery Module 5kW
• 1x Huawei DTSU666-H 3ph Energy Meter with 3x100A sensors

This set includes mounting material for 3 rows with 6 modules per row.

*Due to storage, the item may have some dirt. This can be easily removed and excludes any return of the item or a price reduction.
