Eco - floor - surface heating system - complete set 20.0m²

Eco - Floor - Surface heating system - Complete set 20.0m²

Product description

Discover the innovative Eco-Floor underfloor heating system. This modern complete set features an ultra-flat underfloor heating system with a height of only 18 mm, making it ideal for use in the renovation of older buildings. It supports both the reinforcement and replacement of existing wooden floorboards without requiring significant floor construction.

The heating system impresses with its versatility and can be used not only as underfloor heating but also as wall and ceiling heating. The system offers particularly flexible installation options in rooms with sloping ceilings.

Application areas

The MDF surface heating system is perfectly suited for achieving efficient and discreet heat distribution in various building projects. Thanks to its low profile, it is ideal for retrofitting in older buildings where conventional heating systems often result in undesirable space loss.

Its versatile use as a wall or ceiling heating system makes it an attractive solution for a wide variety of structural requirements and individual design preferences.

Technical data and material quality

The heating system is based on a medium-density fiberboard (MDF) measuring 1200 mm x 600 mm x 18 mm, which features a special milled pattern. This pattern allows for the precise insertion of a 12 mm thick plastic pipe, thus optimizing the heating circuit.

With a tensile strength of 0.75 N/mm², a flexural strength of 30 N/mm², and a thermal conductivity of 0.14 W/mK, the material is highly compressed, moisture-resistant, and completely formaldehyde-free. Its thermal output ranges between 60 and 80 W/m², ensuring even and comfortable heat distribution.

Assembly instructions

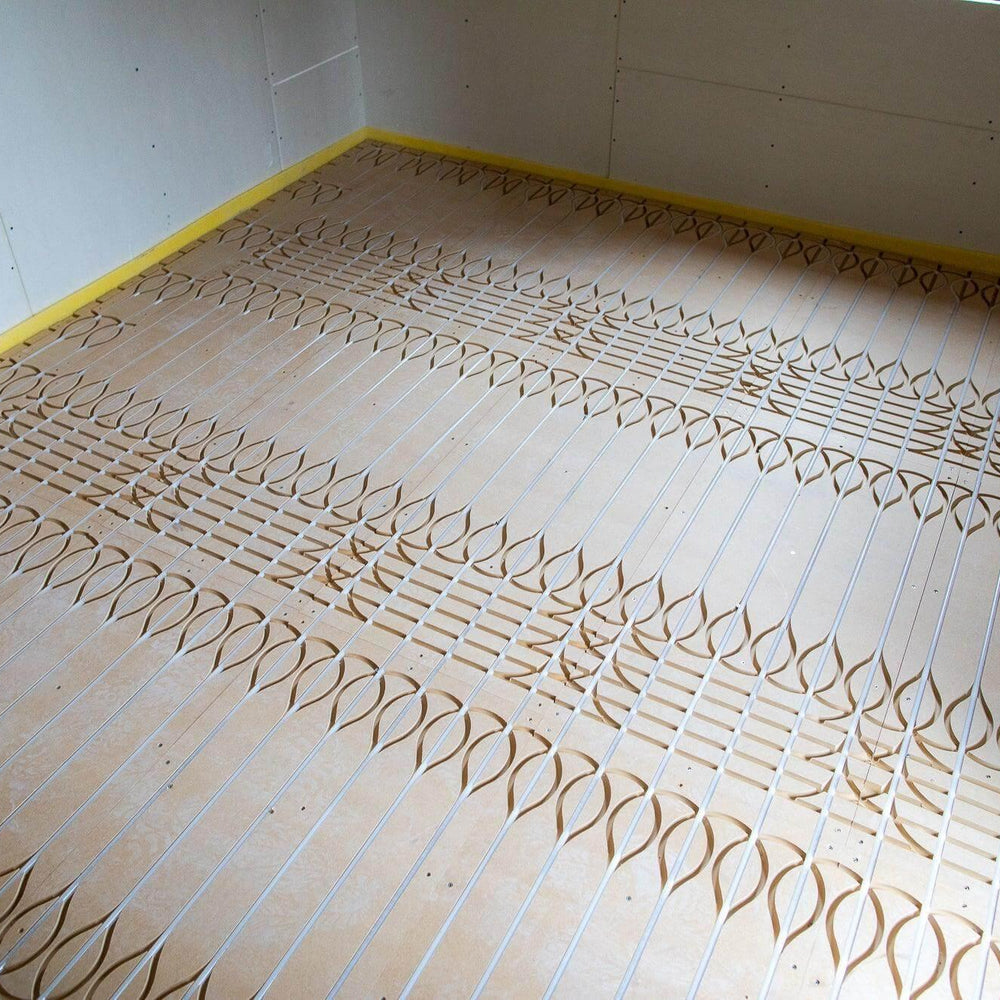

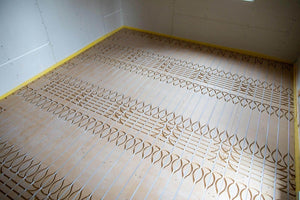

The installation takes place in several steps: First, the base plates are laid seamlessly according to the milling pattern. A proper wall clearance of 5 to 10 mm must be taken into account to allow for material expansion.

The panels are then fixed in place with standard wood screws, and the heating pipe, with a maximum length of 80 m per heating circuit, is inserted into the milled pattern. Finally, the heating circuit is connected to ensure the reliable operation of the underfloor heating system.

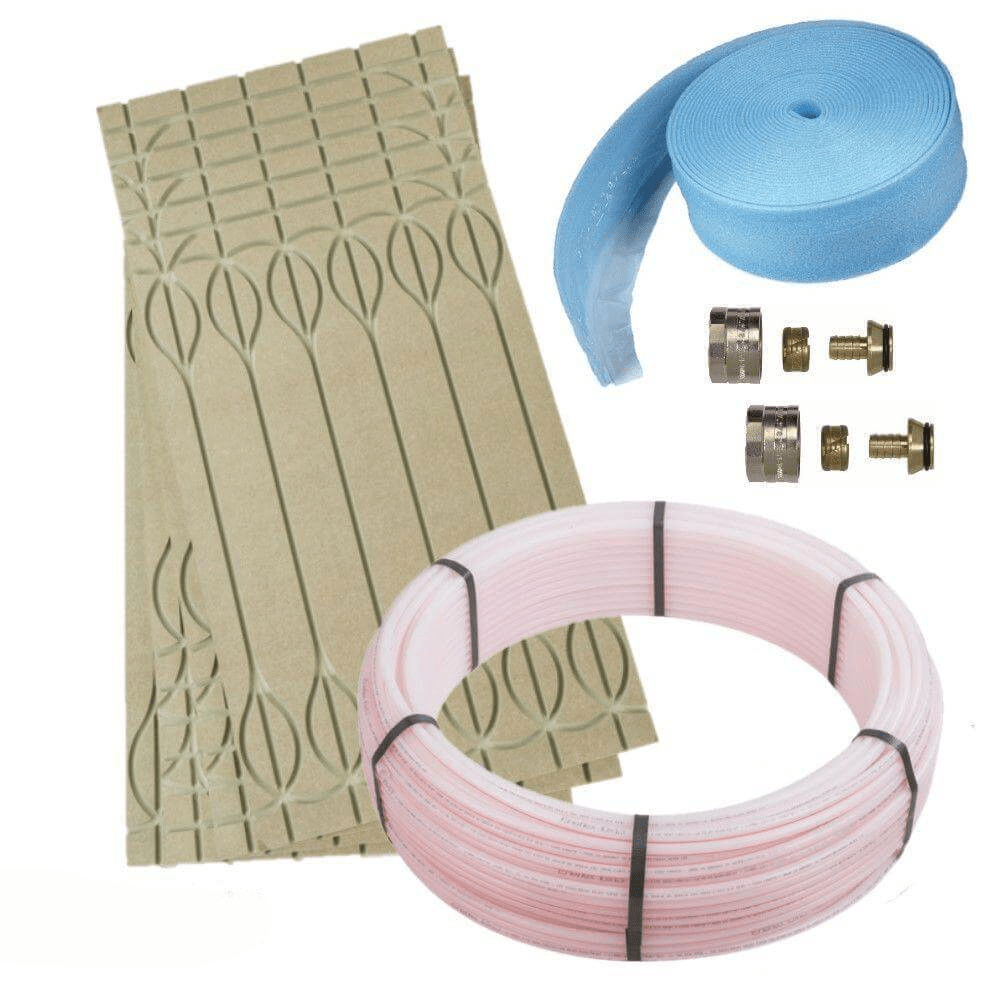

Scope of delivery

• 28 MDF support boards; 1200 x 600 x 18 mm
• 170 m FB heating pipe, PE-RT 12 x 1.3 mm
• 25 m edge insulation strips 100 x 8 mm;
• 4 pieces compression fitting 12 x 2 mm
• 1 x Assembly instructions

Material recommendation: (depending on surface covering, not included in the scope of delivery):

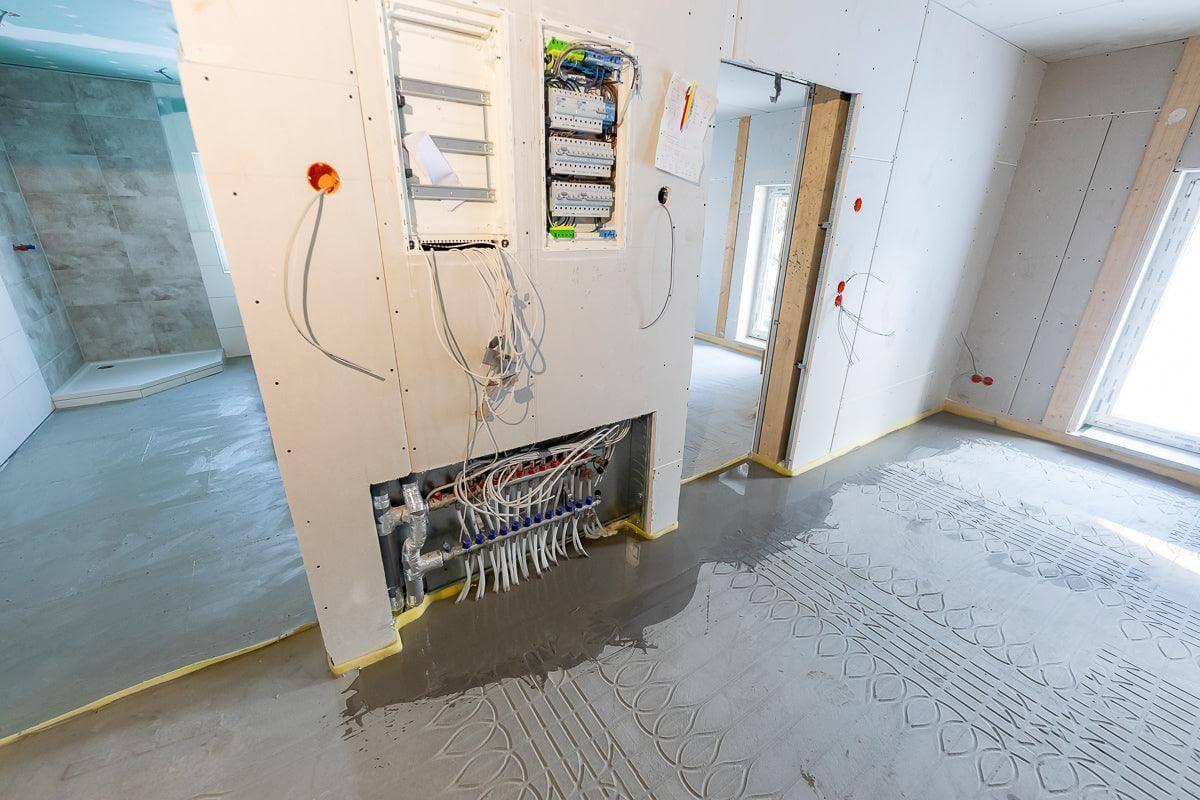

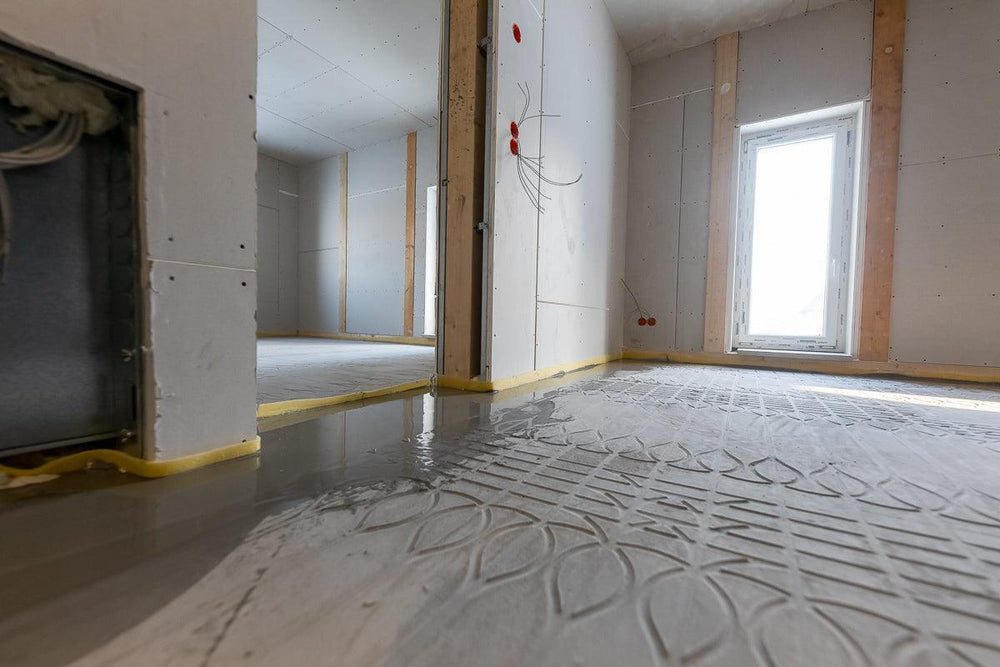

Leveling compound (Maxit HAM50 Renovation leveling compound fast)
Ceramic surface coverings -> fully plastered with leveling compound and decoupling mat

Download

• Assembly instructions

*Technical changes reserved | Images may differ
