LK | SKU:
TC100
Control thermostat including immersion sleeve for automatic temperature control 0°C-90°C
Normal price
28,91 €
Basic price
vAT included.
Shipment will be charged at checkout.
Control thermostat including immersion sleeve for automatic temperature control 0°C-90°C is in stock and will be shipped as soon as it is available again
Manufacturer Information
Control thermostat including immersion sleeve for automatic tempera...
Normal price
28,91 €
Basic price
Keine technischen Highlights gefunden.
Description
Description

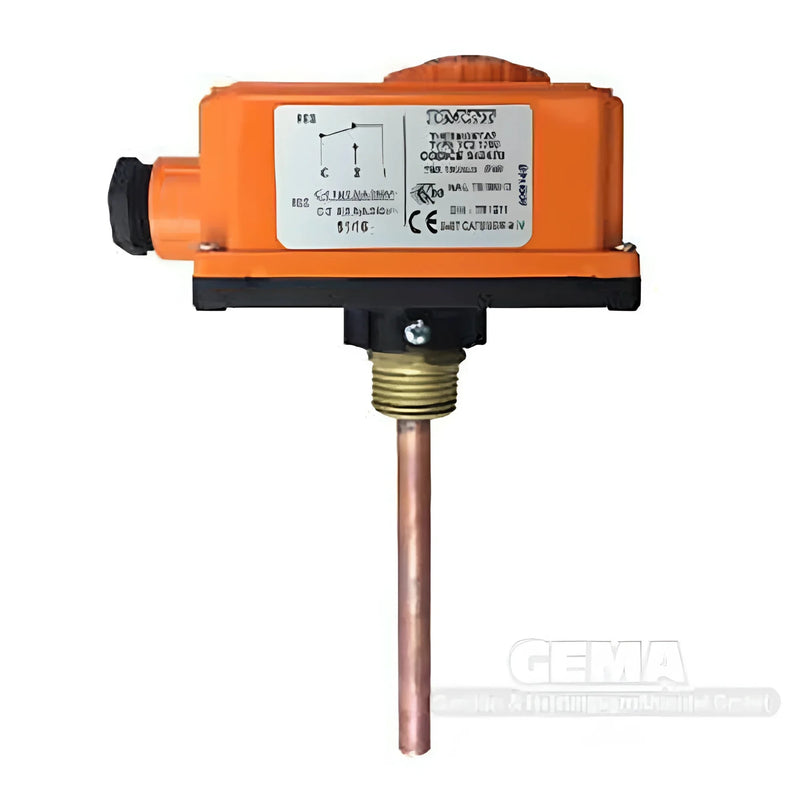

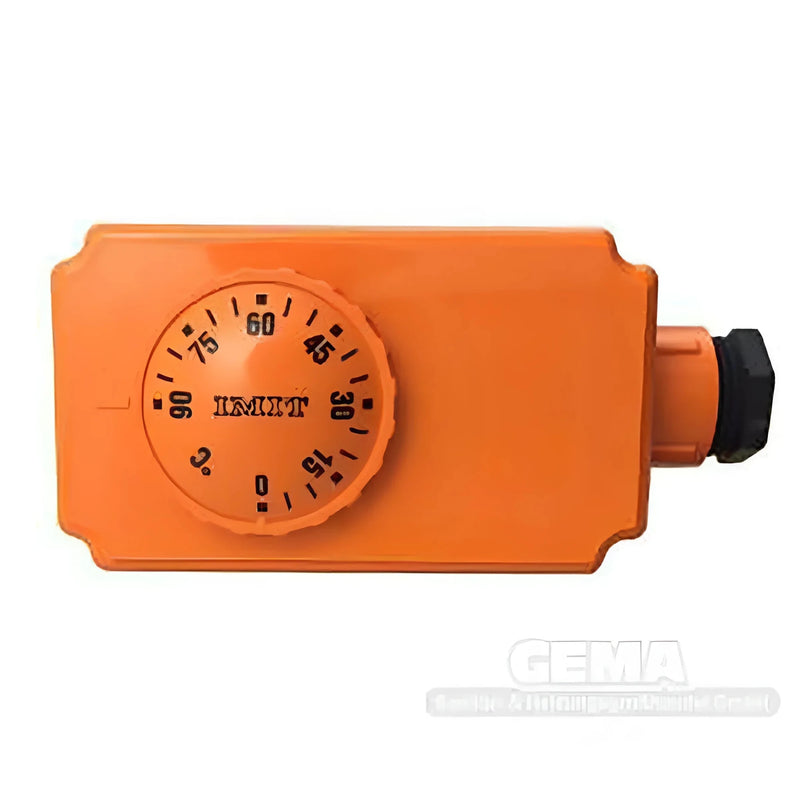

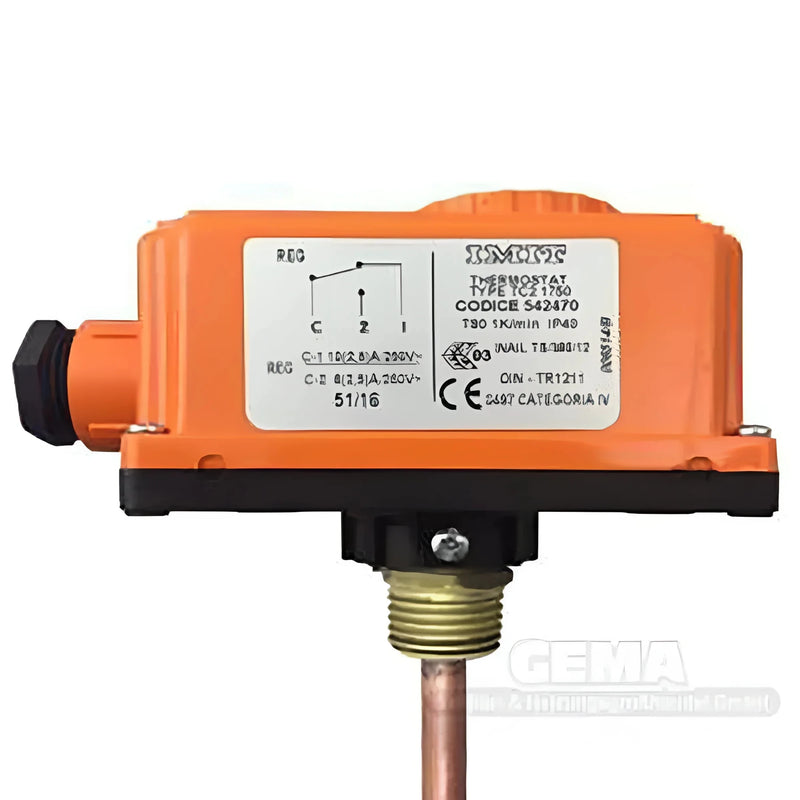

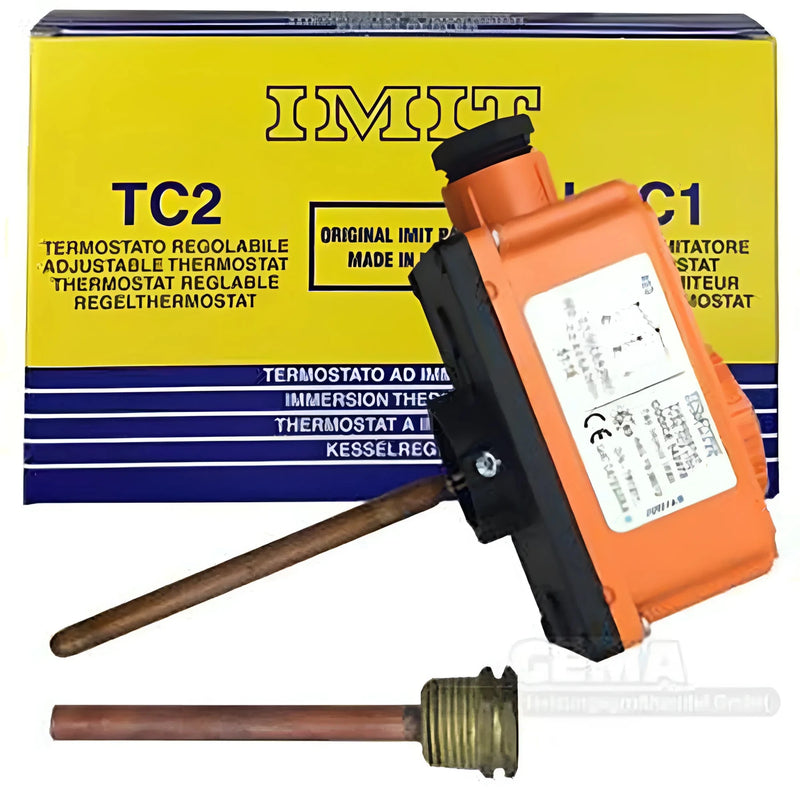

Control thermostat including immersion sleeve
Control thermostat inkl.TauchhThe ülse is used for automatic temperature control from 0°C to 90°C of heating boilers, storage tanks and water heaters with external adjustment.
For automatic temperature control from 0°C to 90°C of heating boilers, storage tanks and water heaters with external adjustment.
Technical specifications: Thermostat
- IMIT TC2 Control Thermostat
- Unit designation
- Length of immersion sleeve 85 mm
- Thread size of the immersion sleeve 1/2"
- Temperature range: 0 - 90 °C
- Tolerance ±5k
- Differential 6+-2K
- Protection class IP40
- Insulation class 1
- Temperature class <1K/min
- Maximum head temperature 80 °C
- Max. bulb temperature 125 °C
- Storage temperature 15 - 55 °C
- Max. sheathing pressure 10 bar
- time constant <1'
- Output: Breaker or changeover contacts
- Contact rating C-1: 10 (2.5)A/250V~ C-2: 6 (2.5)A/250V~
- Efficiency level 1B
- Installation conditions: normal environment
- Cable gland M20x1.5
Control thermostat inkl.Tauchhülse
